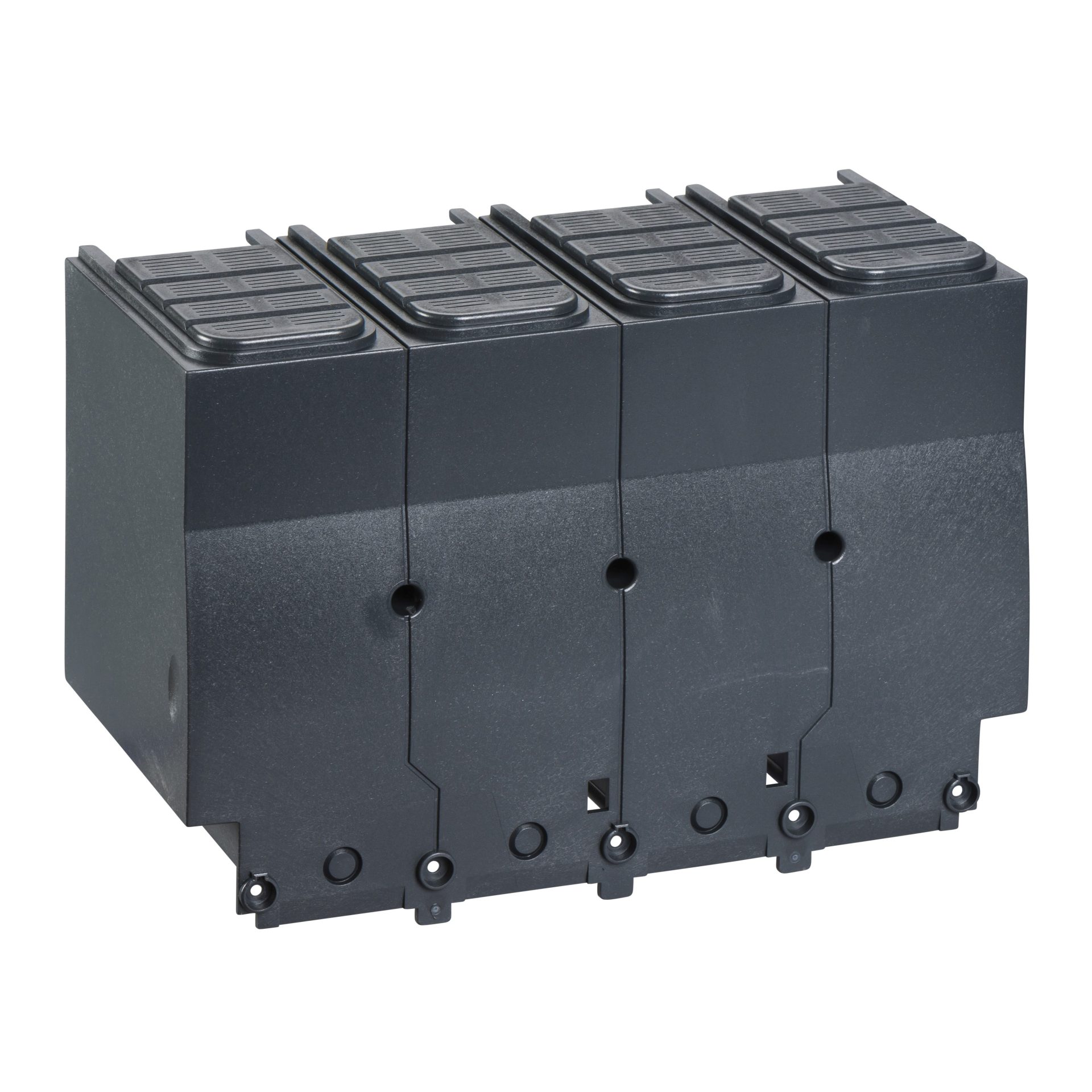

Lv432596 – Long Terminal Shield For Spreaders, Compact Nsx, Easypact Cvs, 4 Poles, Pitch 52.5 Mm, LV432596

This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 52.5mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
