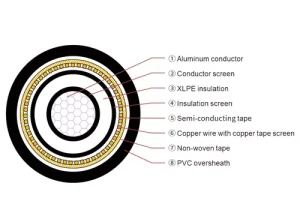

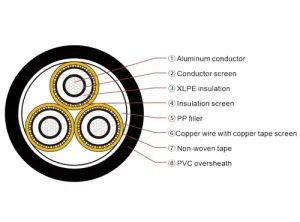

Description
Conductor
Class 2 stranded compacted copper conductor
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Concentric copper wires and copper tape
Separator
Binding tape
Inner Sheath
PVC (Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium Wire)
Multi core: SWA (Galvanised steel wire)
Sheath
PVC (Polyvinyl Chloride)
Application

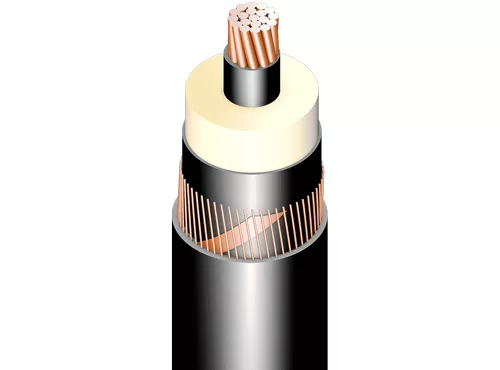

Medium voltage armoured cable refers to a type of electrical cable designed to transmit power at medium voltage levels while providing mechanical protection.
It is commonly used in various applications, such as industrial plants, utility substations, power distribution networks, and construction sites.
Feature
AAAC aerial conductor has a high tensile strength, good corrosion resistance, light weight and comparable current carrying capacity.
It is designed for medium and long spans, can be used for LV and MV distribution networks.
Standard
IEC 60502-2, BS 7870 or other standard can be customized.
