Description

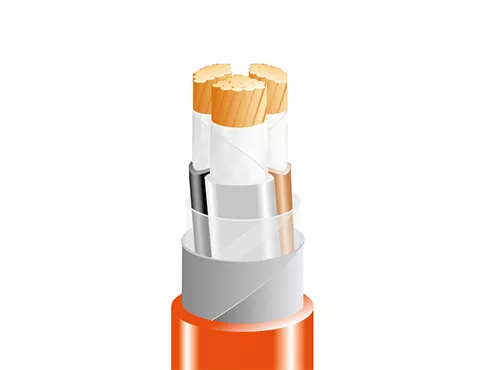

Fire Retardant Low Voltage Power Cable
Conductor: Stranded tinned annealed copper, IEC 60228 Class 2
Insulation: XLPE, IEC 60092-360
Cabling: Flame retardant & non-hygroscopic fillers can be used Suitable tape(s) can be applied on the cabled core
Outer sheath: Halogen-free flame retardant thermoplastic compound (SHF1) Halogen-free flame retardant thermoset compound (SHF2)
Flammability: LSHF Flame retardant

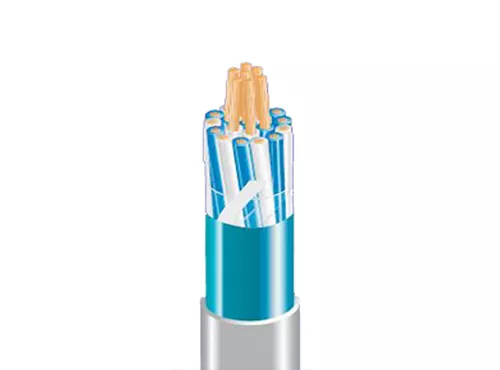

Flame Retardant Instrumentation Cable (Overall Screen)
Conductor: Stranded tinned annealed copper, IEC 60228 Class 2
Insulation: XLPE, IEC 60092-360
Cabling: Flame retardant & non-hygroscopic fillers can be used Suitable tape(s) can be applied on the cabled core
Armor: Tinned copper wire braid
Outer sheath: Halogen-free flame retardant thermoplastic compound (SHF1) Halogen-free flame retardant thermoset compound (SHF2)
Flammability: LSHF Flame resistant

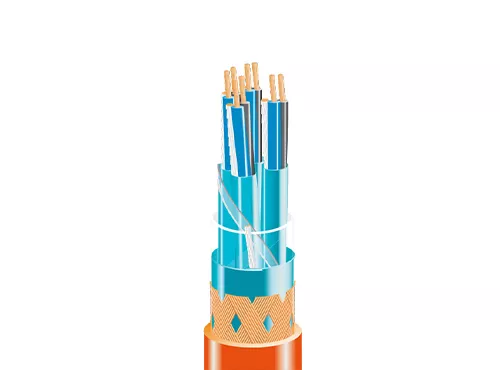

Flame Retardant Instrumentation Cable (Individual Screen)
Conductor: Stranded tinned annealed copper, IEC 60228 Class 2
Insulation: XLPE, IEC 60092-360
Individual screen: AL/PS tape with tinned copper drain wire Each pair/triad is wrapped with polyester tape to prevent electrical contact with adjacent pairs/triads
Cabling: Flame retardant & non-hygroscopic fillers can be used Suitable tape(s) can be applied to the cabled core
Armor: Tinned copper wire braid
Outer sheath: Halogen-free flame retardant thermoplastic compound (SHF1), Halogen-free flame retardant thermoset compound (SHF2)
Flammability: LSHF Flame resistant

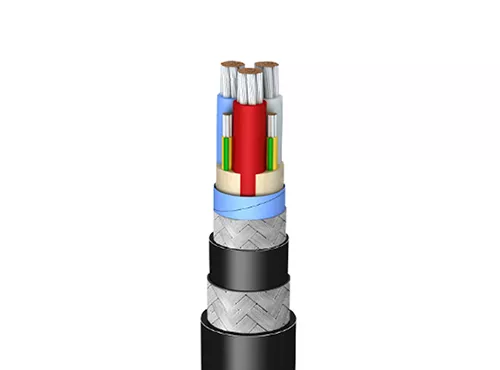

Flame Retardant VFD Cable
Conductor: Stranded tinned annealed copper, IEC 60228 Class 5
Insulation: XLPE, IEC 60092-360
Cabling:Flame retardant & non-hygroscopic fillers may be used Suitable tape(s) may be applied to the cabled core
Collective screen: CU/PS tape with tinned copper drain wire
Armor: Tinned copper wire braid
Outer sheath: Halogen-free flame retardant thermoplastic compound, Halogen-free flame retardant thermoset compound
Flammability: LSHF Flame retardant

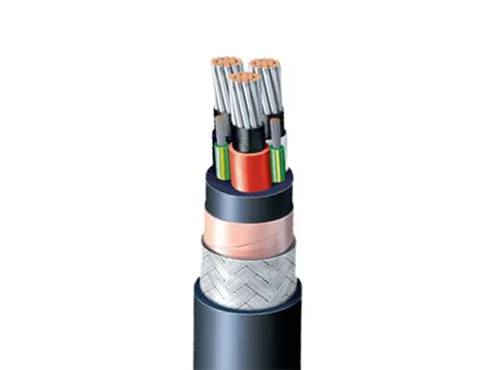

ERP Insulation Marine Flex Cable
Conductor: IEC 60228 Class 5 Stranded tinned annealed copper, IEC 60228 Class 5
Insulation: EPR, IEC 60092-360
Laying up: Cores are laid up together
Sheath: PCP/PVC
Construction: Flexible copper conductor Black, if any
Flammability: Flame retardant
