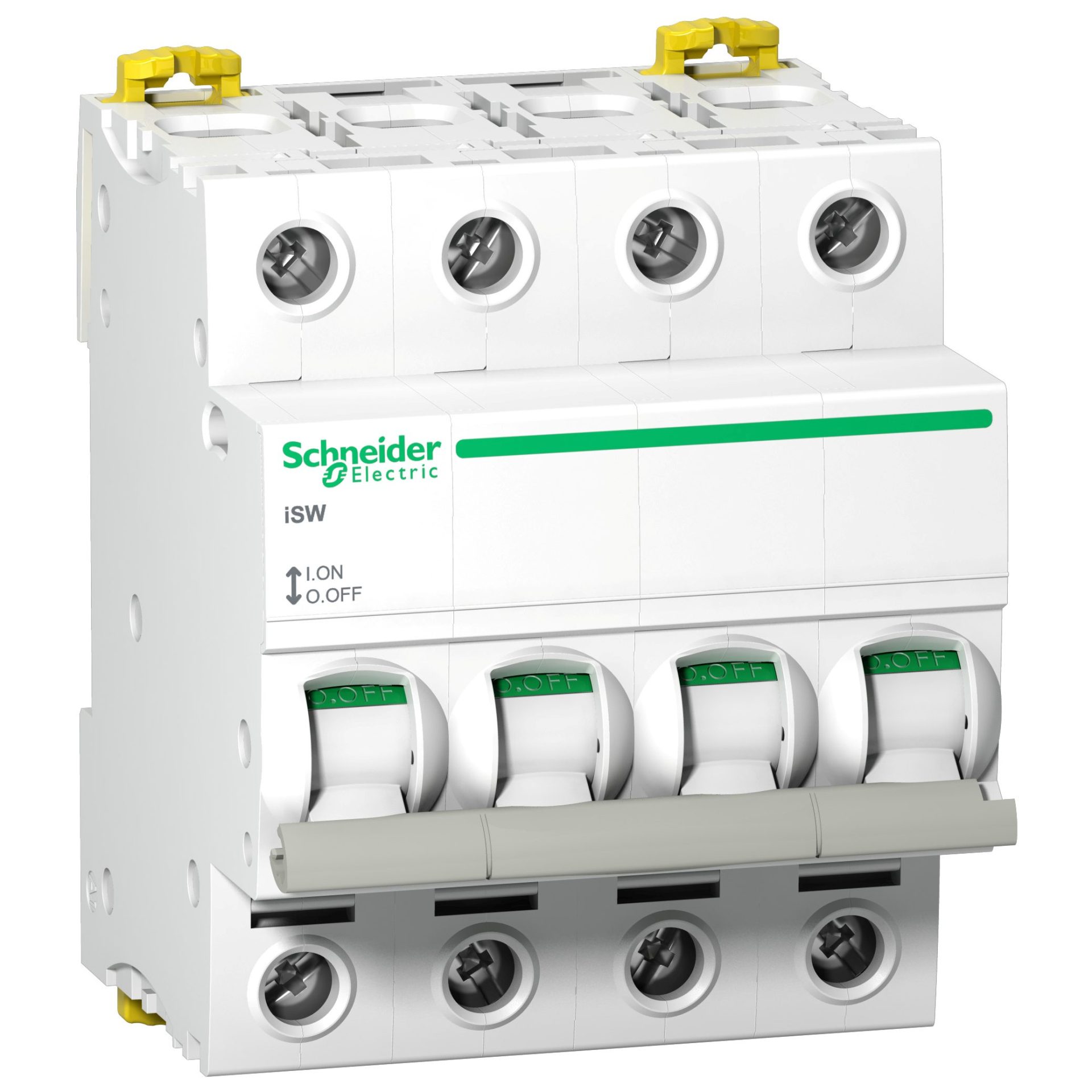

Switch Disconnector Isw – 4P – 125 A – 415 V, A9S65492

Description

This Acti9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 125A, and operating voltage is 415VAC. Electrical endurance goes up to 2500 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25ÁC to +60ÁC. The storage temperature is -40ÁC to +85ÁC. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
