Description

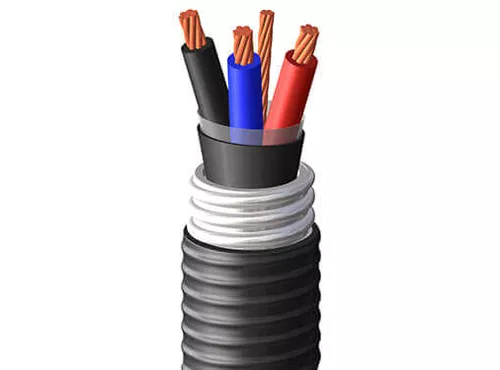

Construction
Conductor: Round concentric lay class “B” stranded copper/ Aluminum compact class “B” strand
Insulation: Cross-linked Polyethylene (XLPE)
Bonding Conductor (Ground): Bare stranded class “B” copper conductor/ Bare stranded bare aluminum (ACM) conductor
Inner Jacket: Polyvinyl Chloride (PVC), black
Armour: Aluminum interlocked armour
Outer Jacket: Low acid gas, flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC), black
Application
- For concealed wiring in dry or wet locations
- For exposed wiring in dry or wet locations
- For exposed and wiring in dry, locations were subjected to corrosive action if suitable for corrosive conditions encountered
- For exposed wiring where subjected to the weather
- For use in ventilated, Non-ventilated, and ladder-type cable trays in dry or wet locations
- For direct earth burial (with protection as required by inspection authority)
- For service entrances above or below ground
Feature
The cable consists of multiple conductors, typically made of copper or aluminum, which carry the electrical current.
These conductors are insulated with a layer of material, such as cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC), to prevent electrical leakage and ensure safe transmission.
The number of conductors can vary depending on the specific application and requirements.
- Rated at 90°C wet or dry
- Excellent crush resistance
- Provides long service life
- Cost effective alternative to installations in conduit
- Meets cold bend and impact tests at (-40°C)
